For each species below, observe the illustration and microscope image, then identify the phytoplankton group and key morphological features.

Cyanobacteria

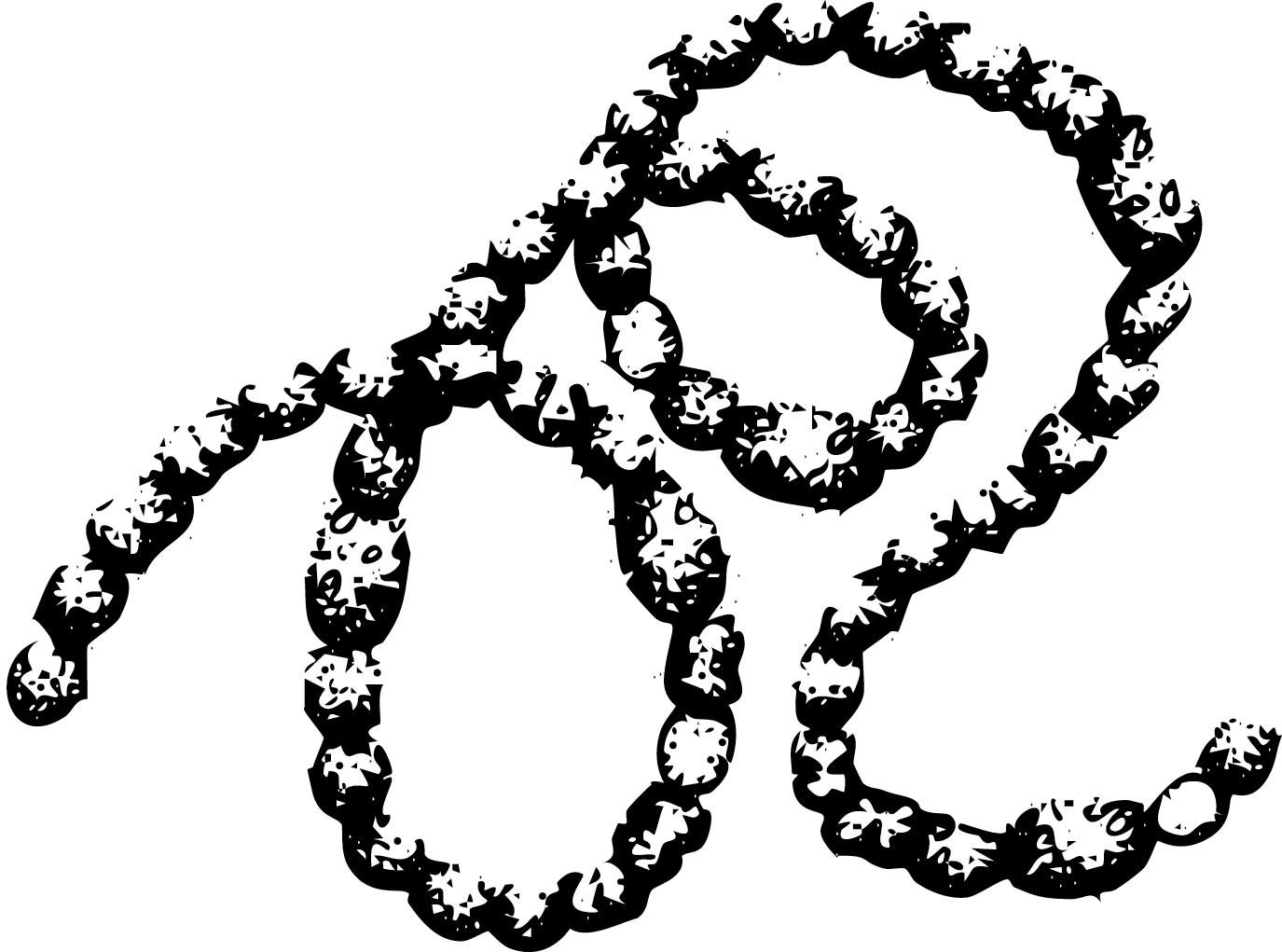

Dolichospermum spp.
Filamentous chains; cylindrical/barrel cells; heterocysts for N₂ fixation; freshwater cyanotoxins

Coccolithophore

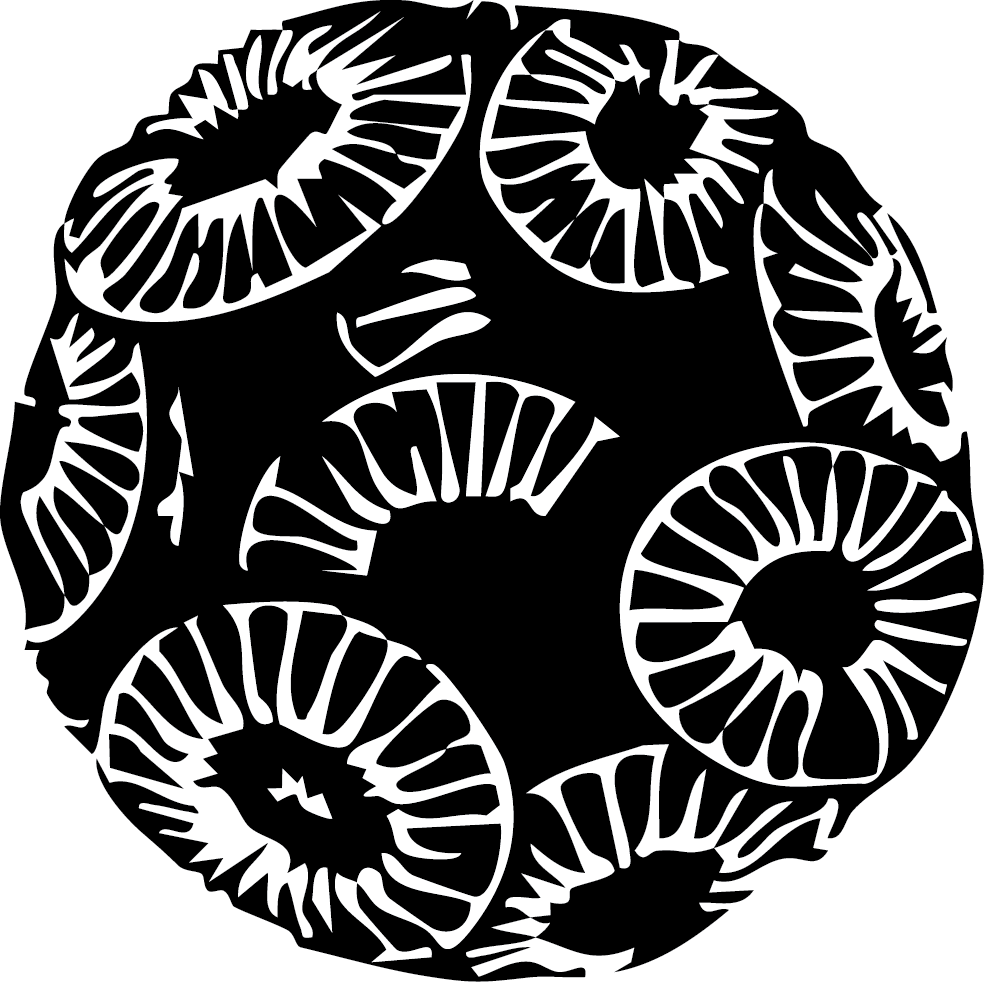

Emiliania huxleyi
Spherical; calcium carbonate coccolith plates; no HAB; abundant in CCE

Diatom

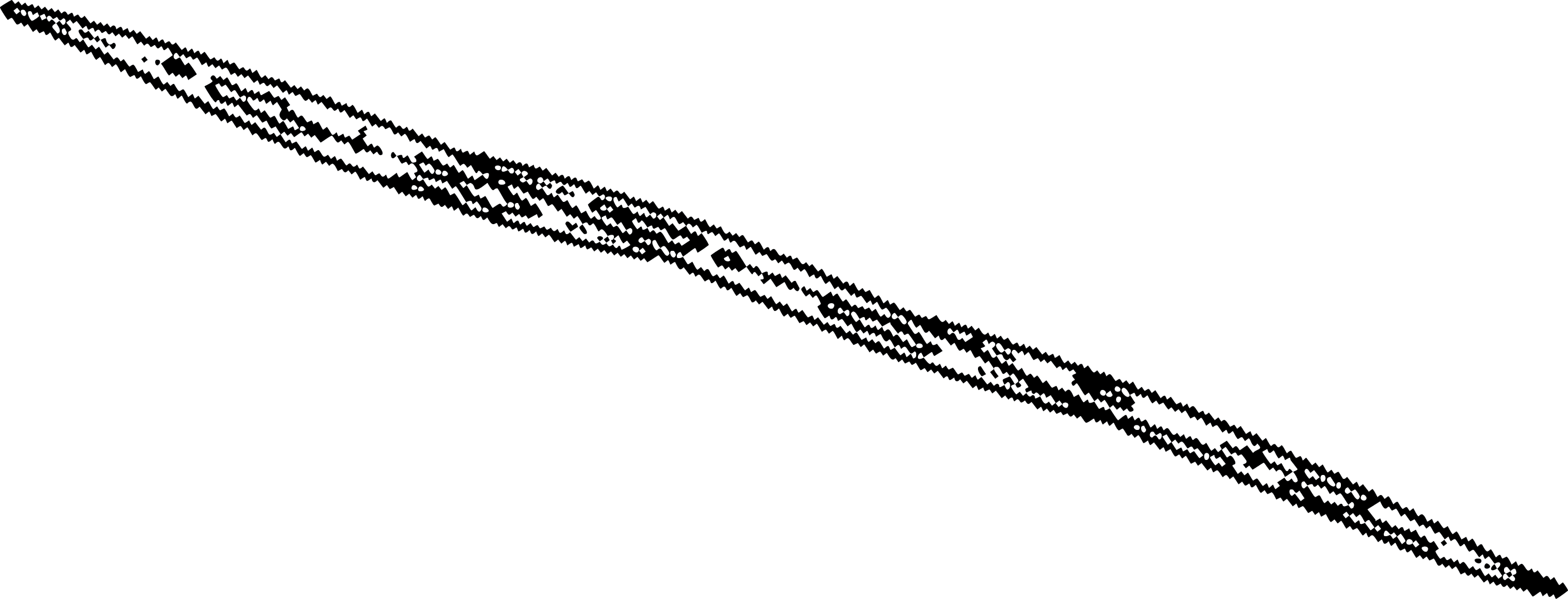

Pseudo-nitzschia spp.
Elongate fusiform; silica frustule; chains; ~½ species produce domoic acid (ASP)

Diatom

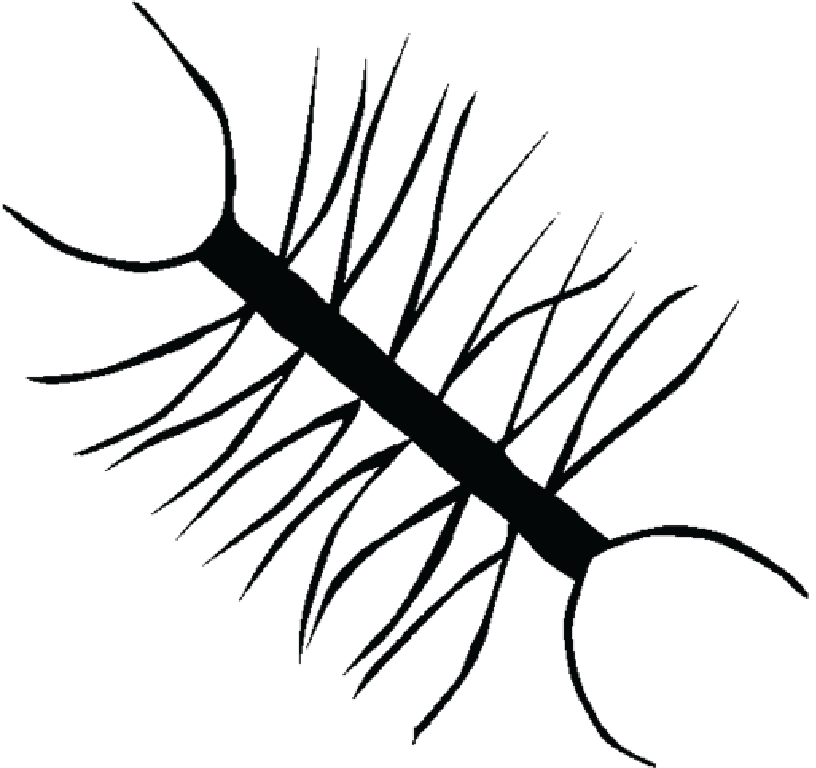

Chaetoceros spp.
Rectangular cells; long corner setae; coiled/curved chains; no HAB; abundant in CCE

Dinoflagellate

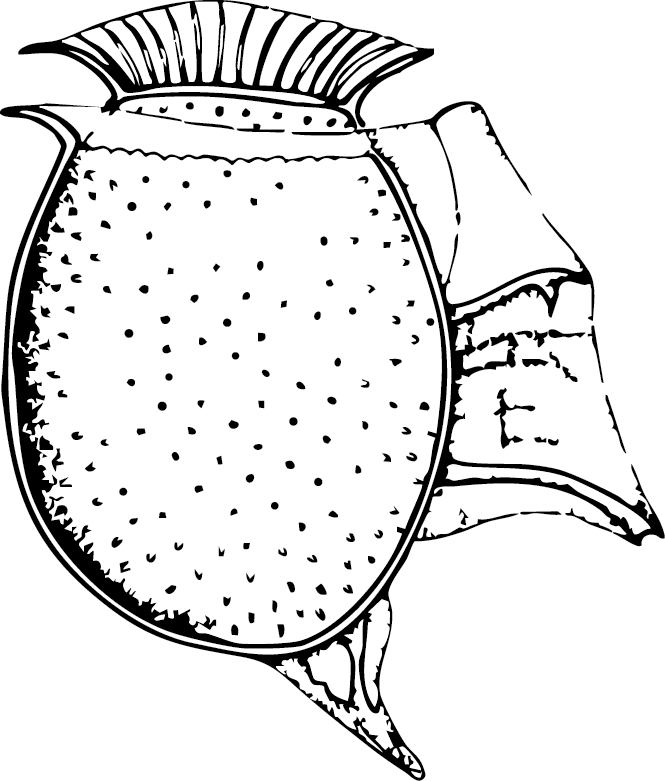

Dinophysis spp.
Armored; laterally flattened; large hypotheca (~¾); girdle lists; okadaic acid (DSP)

Dinoflagellate

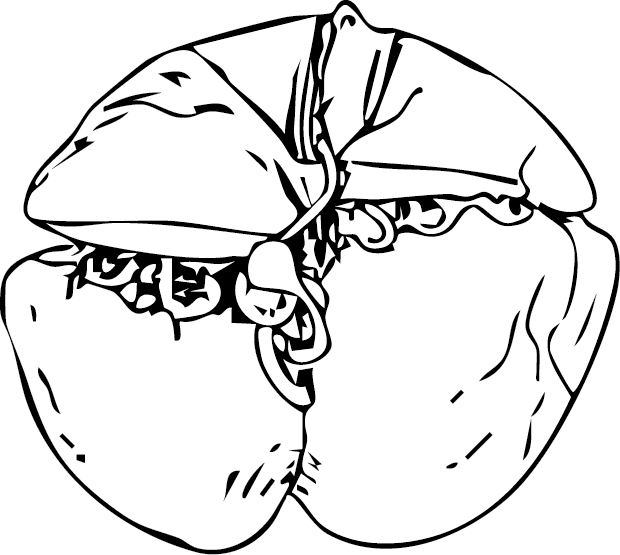

Karenia brevis
Unarmored; apical groove; dorsoventrally flattened; brevetoxins (NSP); Florida red tide

Dinoflagellate

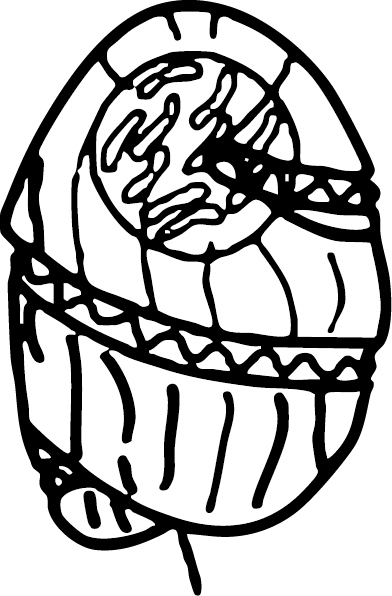

Margalefidinium spp.
Unarmored; cingulum rotates >1.5×; reactive oxygen species; fish kills / brown tide

Dinoflagellate

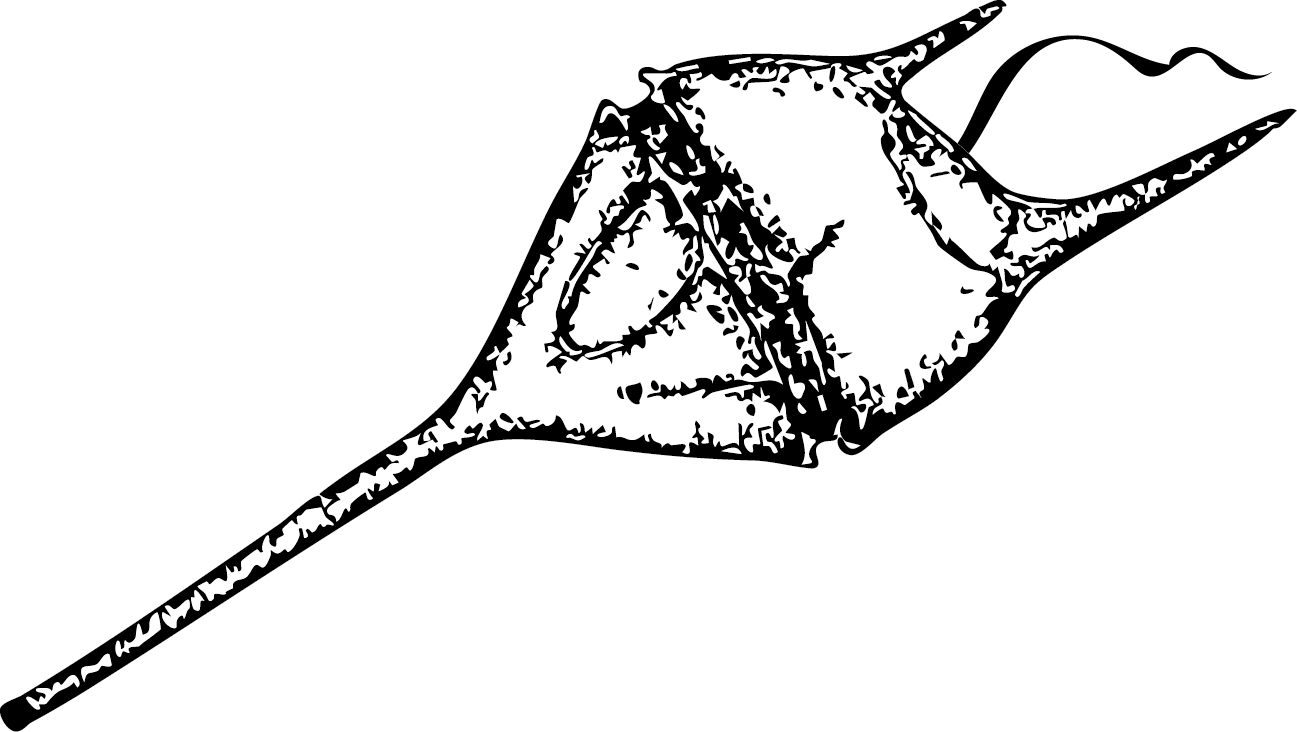

Tripos spp.
Heavily thecate; 1–4 apical/antapical horns; no HAB; common in CCE

Dinoflagellate

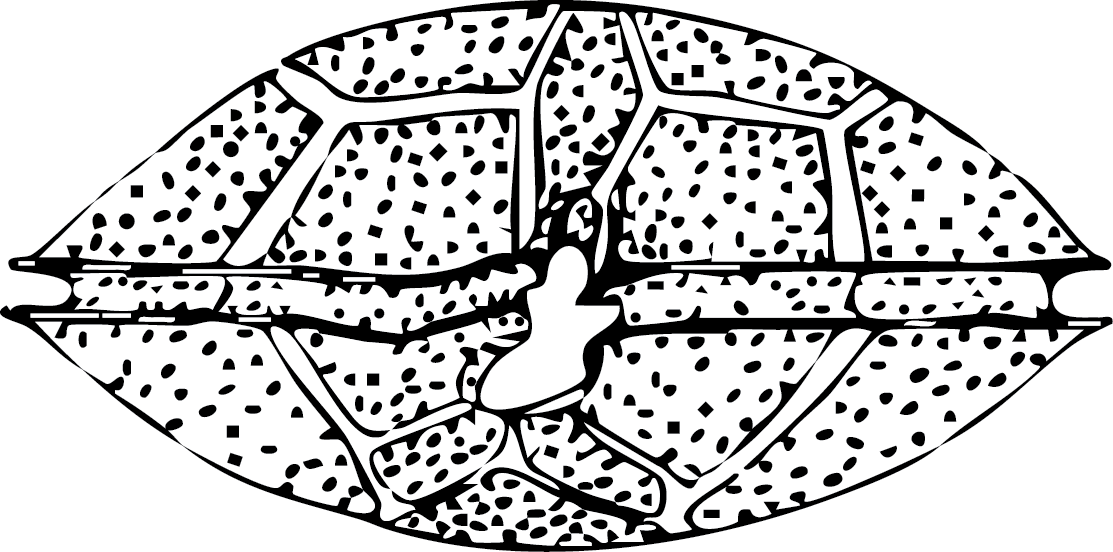

Gambierdiscus spp.
Lens-shaped; anterio-posteriorly compressed; thecate; ciguatoxins (CFP); tropical reefs

Dinoflagellate

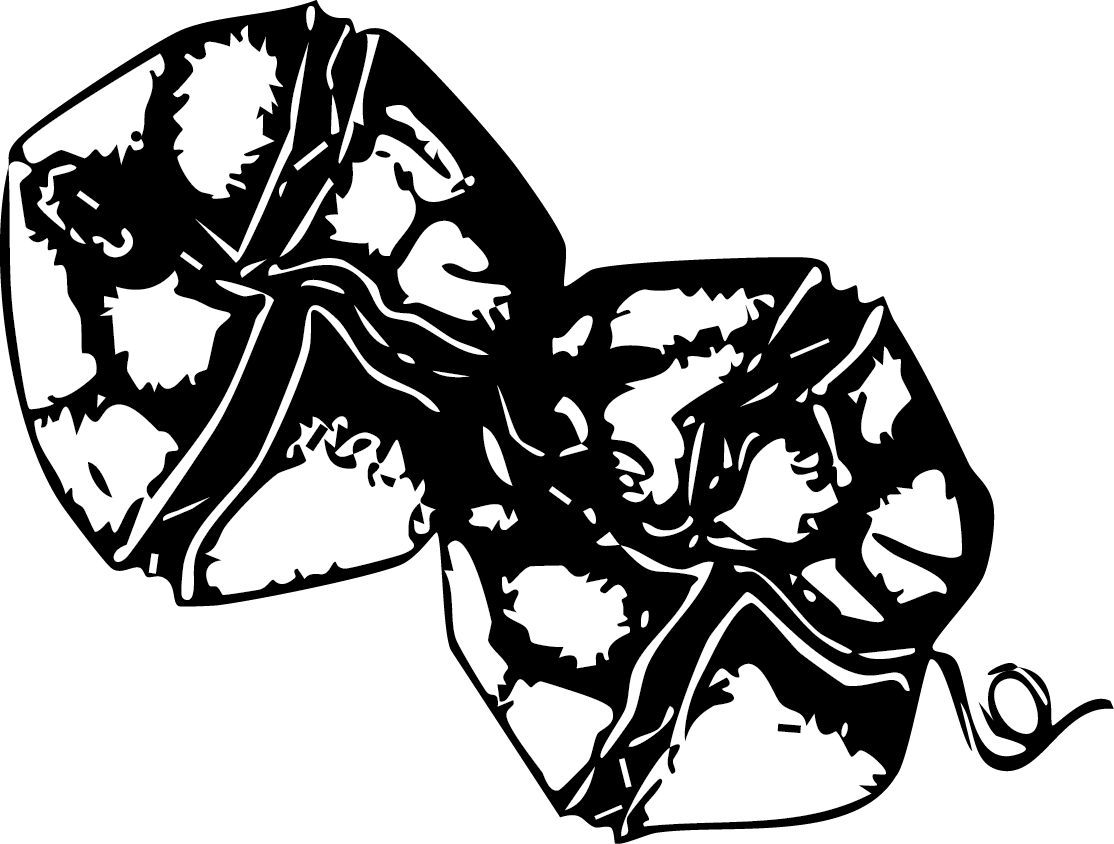

Alexandrium catenella
Armored; spherical; chains; saxitoxins (PSP); abundant in CCE
